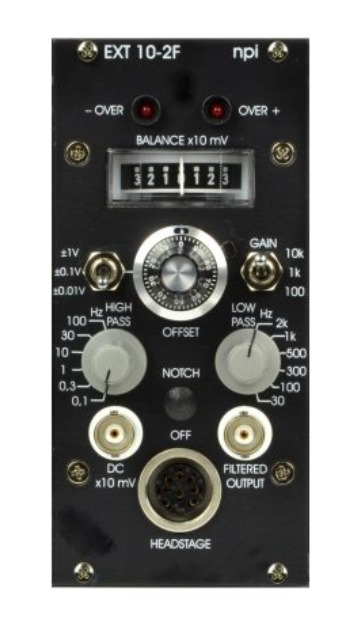

EXT-10-2F – Extracellular Amplifier

Advantages of the EXT-10-2F

• allows for direct filtering of your preferred signal (integrated high and low pass filters)
• easy adjustment for DC offset compensation
• includes a pre-amplifying headstage
• can also be utilized as a stand-alone unit
• capacitance compensation is incorporated within the EXT-10C

Features

• Differential input with high impedance
• Compact headstage featuring a holding bar or mounting plate
• Ten-turn OFFSET adjustment (available ranges: ±0.01V, ±0.1V, ±1V)
• Output options: DC x10mV or FILTERED OUTPUT
• GAIN options: DC x10mV or FILTERED x100, x1k, x10k
• HIGHPASS filter settings: 0.1, 0.3, 1, 10, 30, 100 Hz
• LOWPASS filter settings: 30, 100, 300, 500, 1k, 2k Hz
• NOTCH filter (optional) at 50 or 60 Hz, 4 pole
• OVER LEDs (activate at 10% below the maximum output)
• Analog BALANCE monitor for precise OFFSET control

Also offered as a stand-alone unit in a compact desktop enclosure.
